Voltage Divider

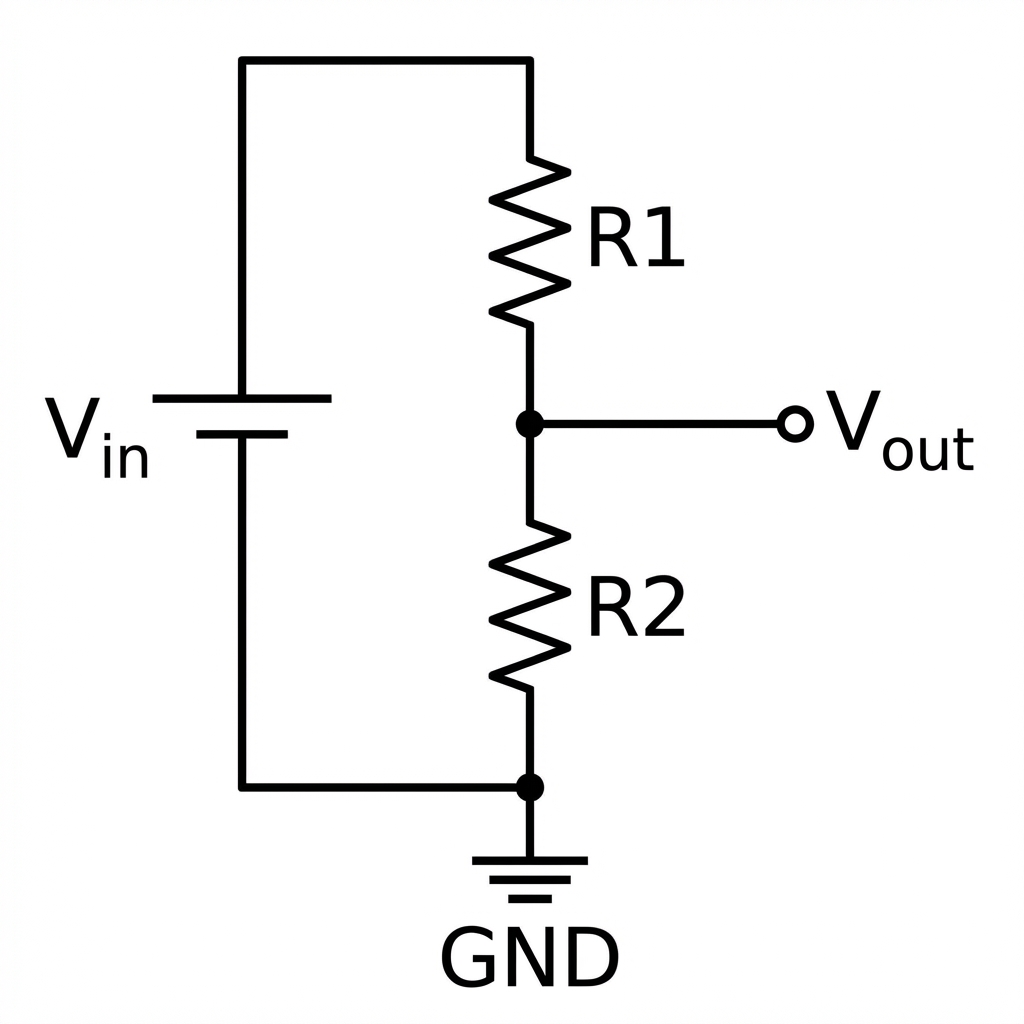

Standard resistive voltage divider.

Voltage Divider
\(V_{out} = V_{in} \frac{R_2}{R_1 + R_2}\)

Instructions: Select the variable you want to solve for, and fill in the others.

Solve Symbol Input Value Unit Description
\(V_{out}\)
\(V\)
\(V_{in}\)
\(V\)
\(R_{2}\)
\(\Omega\)
\(R_{1}\)
\(\Omega\)
