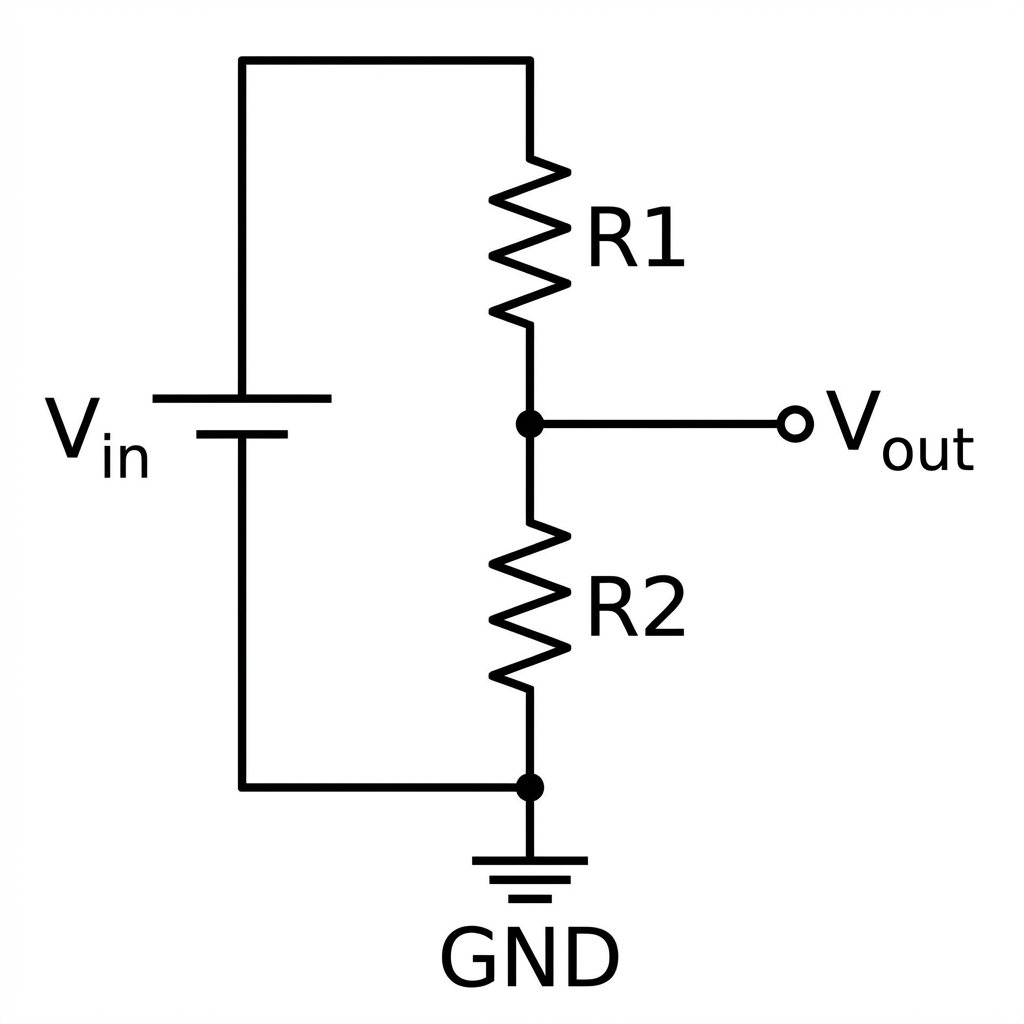

Voltage Divider with Gain

Voltage Divider with Gain
\(V_{out} = (V_{in} \frac{R_2}{R_1 + R_2}) * G\)

Instructions: Select the variable you want to solve for, and fill in the others.

Solve Symbol Input Value Unit Description
\(V_{out}\)
\(V\)
\(V_{in}\)
\(V\)
\(G\)
-
\(R_{2}\)
\(\Omega\)
\(R_{1}\)
\(\Omega\)
